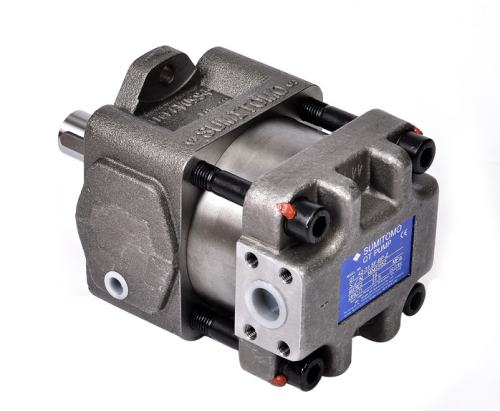

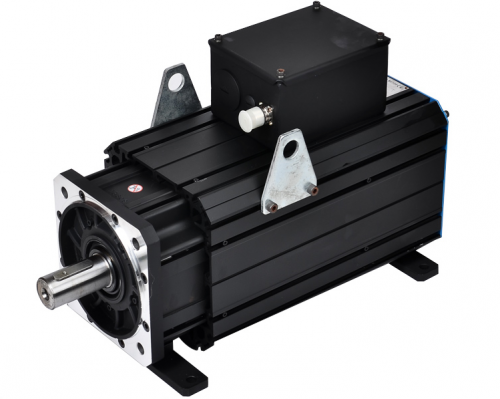

| 460V |
Frame |
C |
|
|
|
|
D |
|
E0 |
E3 |
E2 |
|
| Model Number VFD-___VL43_-J |
055A |
075A |
110A |
150B |
185B |
220A |
300B |
370B |
450B |
550A |
750A |
| Power (kW) |
5.5 |
7.5 |
11 |
15 |
18.5 |
22 |
30 |
37 |
45 |
55 |
75 |
| Horsepower (HP) |
7.5 |
10 |
15 |
20 |
25 |
30 |
40 |
50 |
60 |
75 |
100 |
| Output |
Max. Current (A) (continuous 60 seconds ) |
21 |
27 |
36 |
46 |
58 |
62 |
102 |
124 |
155 |
187 |
255 |
| Max. Current (A) (continuous 20 seconds ) |
25 |
32 |
42 |
54 |
68 |
78 |
120 |
146 |
182 |
220 |
300 |
| Input Current (A) |
14 |
18 |
24 |
31 |
39 |
47 |
56 |
67 |
87 |
101 |
122 |
| Power |
Input Voltage Tolerance |
3-Phase 380~480V, 50/60 Hz |
| Mains Voltage Tolerance |
±10% (342-528V) |
| Mains Frequency Tolerance |
±5% (47-63Hz) |
| Weight (kg) |
8 |
10 |
10 |
10 |
10 |
13 |
13 |
28 |
36 |
50 |
50 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| General Specifications |
Control Method |
SVPWM |
| Speed Detector |
Resolver |
| Speed Input Command |
DC 0~10V, support 3-point adjustment for analog inputs |
| Pressure Input Command |
DC 0~10V, support 3-point adjustment for analog inputs |
| Pressure Feedback Command |
DC 0~10V |
| General Input Signal |
5 ch DC24V 8mA |
| General Output Signal |
2 ch DC24V 50mA, 1 ch Relay output |
| Analog Output Voltage |
1 ch dc 0~10V |
| Optional Accessories |
Speed Feedback PGA Card |
Necessary (EMVJ-PG01R) |
| Brake Resistor |
Necessary (refer to appendix A) |
| Pressure Sensor |
Necessray, only pressure sensors with output signal 0~10V can be used ( max. pressure value can be set by Pr. 00~08) |
| EMI Filter |
Optional ( refer to Appendix A) |
| Protections |
Motor Protection |
Electronic thremal relay protection |
| Over-current |
300% of rated current |
| Ground leakage current |
Higher than 50% rated current |
| Voltage Protection |
Over-voltage Level: Vdc＞400/800V; Low-voltage Level: Vdc＜200/400V |
| Mains Input Over-Voltage |
Varistor (MOV) |
| Over-temperature |
Built-in Temperature Sensor |
| Environment |
Protection Level |
NEMA 1/IP20 |
| Operation Temperature |
-10℃~45℃ |
| Storage Temperature |
-20℃~60℃ |
| Humidity |
90% RH (non-condensing) |
| Vibration |
1.0G 20Hz, 20~60Hz 0.6G ＜20Hz: 1.0G, 20 to 60 Hz: 0.6G |
| Cooling System |
(RUN, STOP) Force cooling (RUN, STOP) |
| Installation Location |
Altitude 1,000m or lower (keep away from corrosive gasses, liquid and dust) |
| Certifications |
CE |
